Product introduction
Enamelled flat wire refers to the wire of an oxygen-free copper rod or an electrician's round aluminum rod after a certain specification mold drawing, according to customer requirements, with the required temperature resistance index and compatibility of insulating paint, the use of mold or felt paint, paint a number of corresponding insulating paint, after baking treatment, so that insulating paint and wire form a whole. The product is suitable for transformer, generator, motor, reactor and a variety of electrical equipment winding.
Product range
Narrow side dimension a:1.00mm - 5.00mm.
Wide side dimension b:3.00mm - 16.00mm.
Recommended conductor width ratio 1.5 < b/a < 7.5.
Implementation standard: GB/T7095-2008.
Product Material
Copper flat wire should comply with the provisions of GB5584.2-2009, and the resistivity at 20℃ is not greater than 0.017241Ωmm2/m
Product category
120(155) grade acetal enamelled cooper flat wire.
130 class polyester coated cooper flat wire.
155 class polyester coated cooper flat wire.
180 grade polyester imide enamelled cooper flat wire.
200 grade polyester imide/polyamide imide composite enamelled cooper flat wire.
If you choose other kinds of enamelled wire, please contact us.
Applications
1.Microwave transformers;
2.Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission;
3.Magnetic wire used in High Frequency transformer,common transformer, inductance coils, electromotors, household electromotors and micro-motors;
4. Enamelled wire used in small-motor rotor winding .etc.
5.Magnet wires used in monitor deflection coil;
6. Magnet wires used in degaussing coil;
7. Other special magnet wire.
Product Parameter
Model | Polyimide | Polyester/Poliamide imide | Acetal | Heat bonded acetal |
VICATA | 180 | 200 | 120(155) | 120 |
Performance | High heat resistance | Excellent heat resistance | Excellent resistance to transformer oil | In addition to having all the properties of acetals |
Good resistance to chemical solvents | Excellent chemical resistance | Very good scratch resistance | It can also be heated | |
Strong hydrolysis resistance | Very good scratch resistance | Excellent flexibility and adhension and hydrolysis | Good bonding strength | |
Standard | GB/T7095.4-2008 OR IEC60317-28 | GB/T7095.6-2008 OR IEC60317-29 | GB/T7095.2-2008 OR IEC60317-1 |
|
Test standard | GB/T4074 OR IEC60851-1-6 | |||
Certificates
Customer Visits

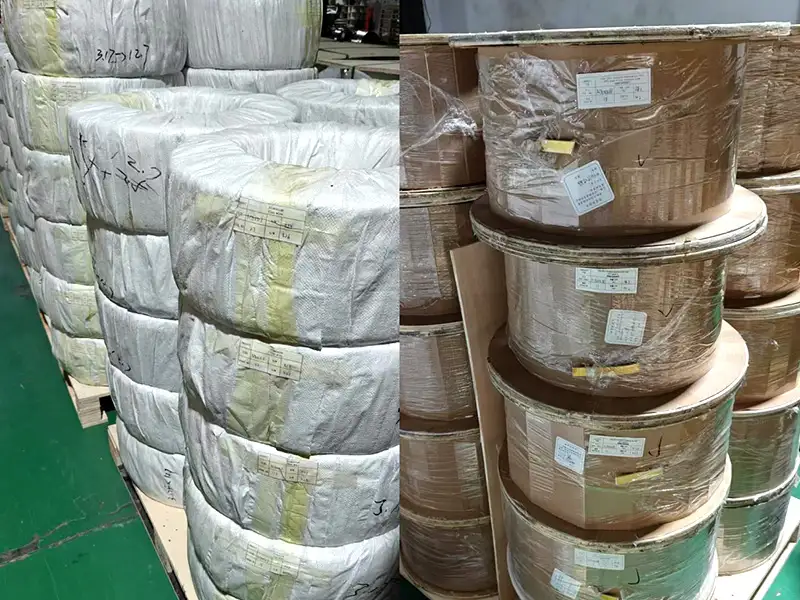

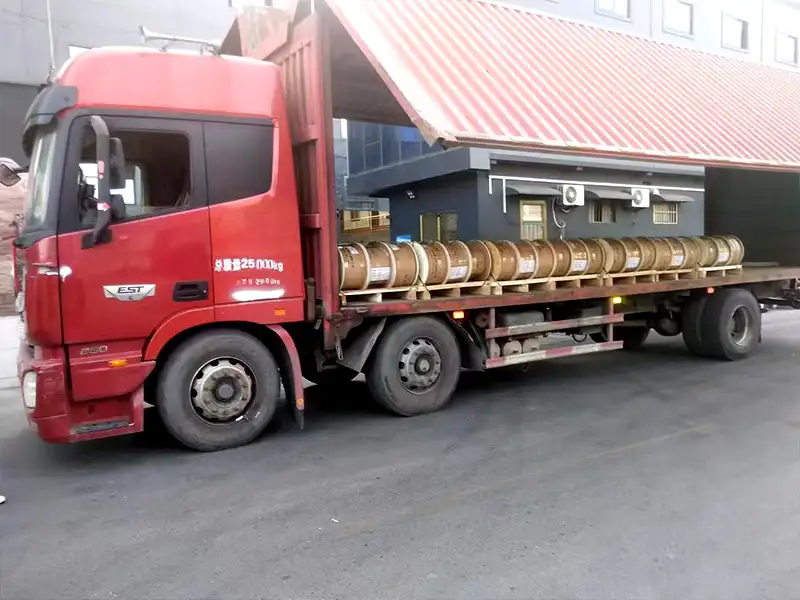

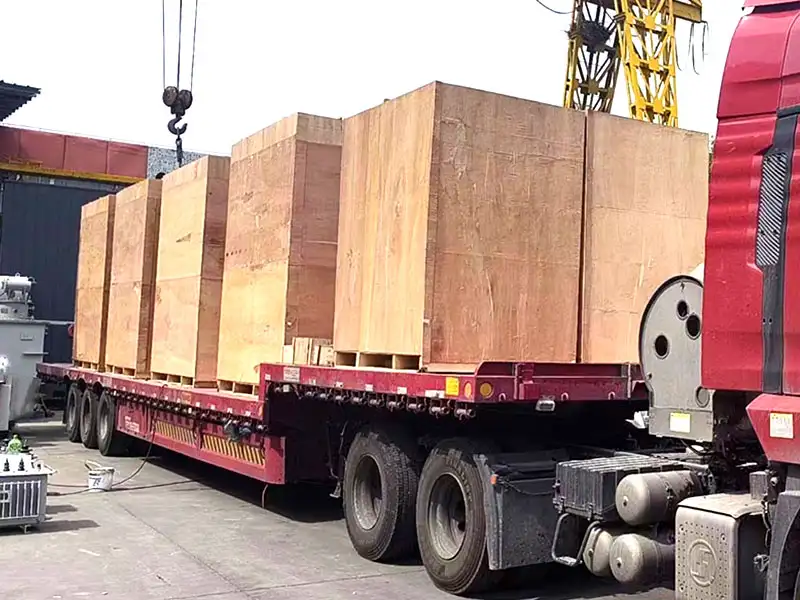

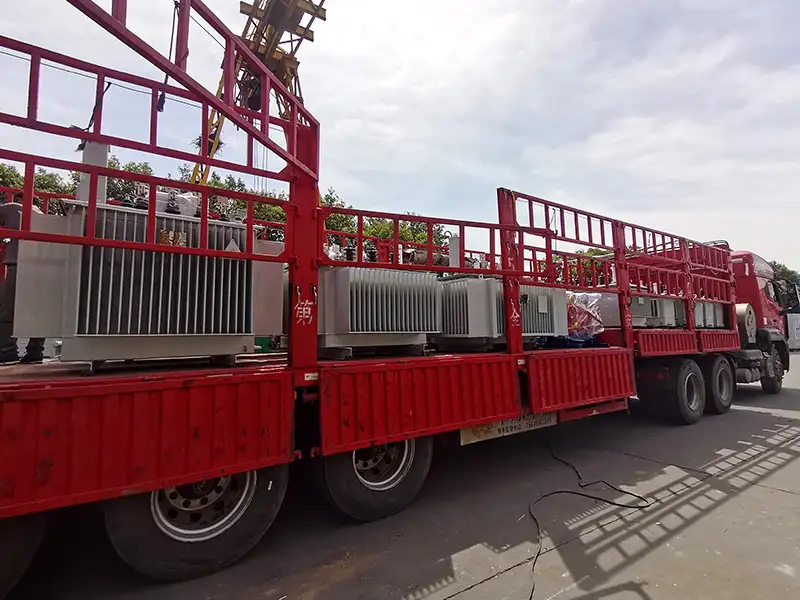

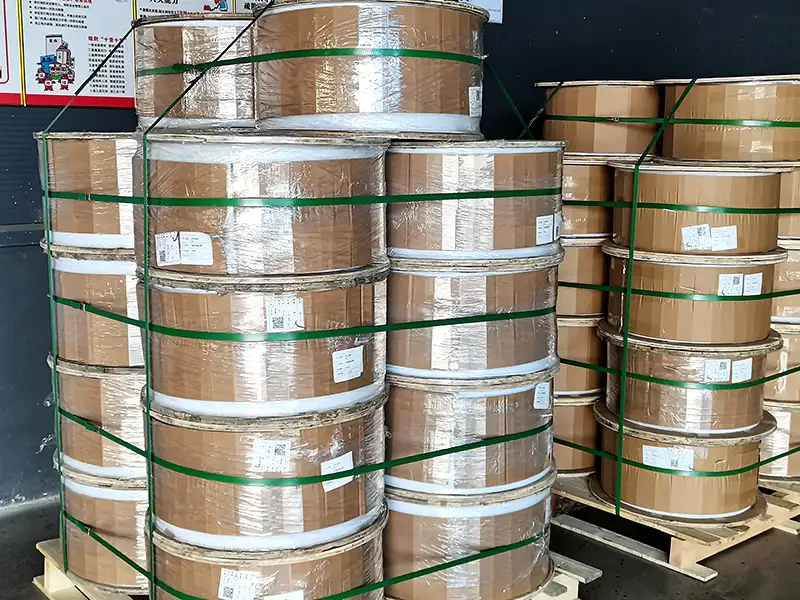

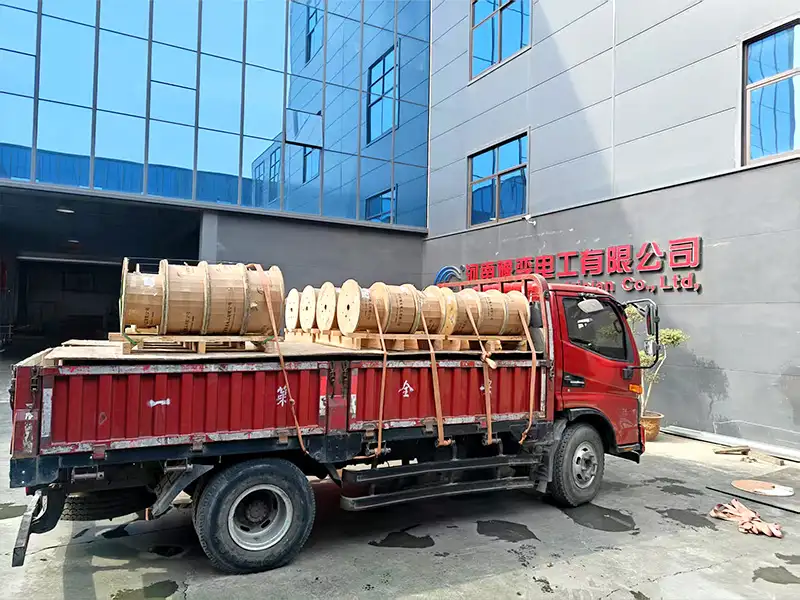

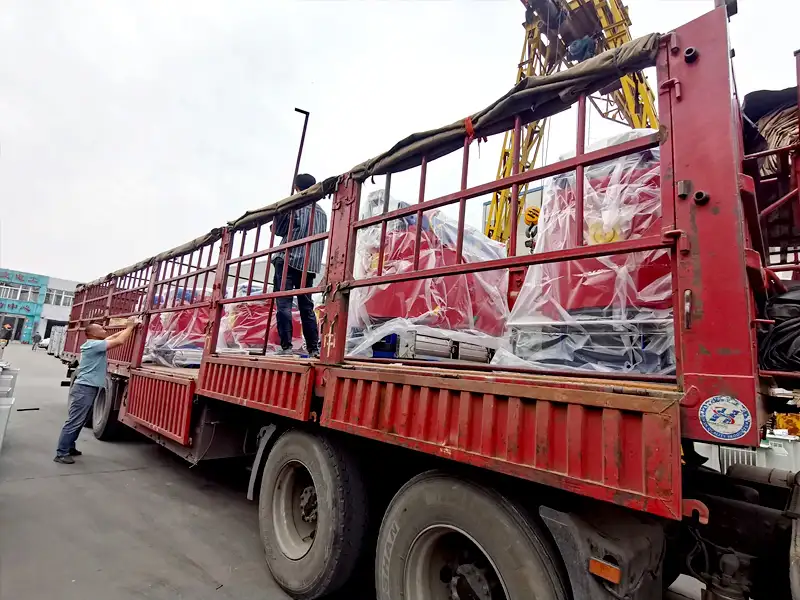

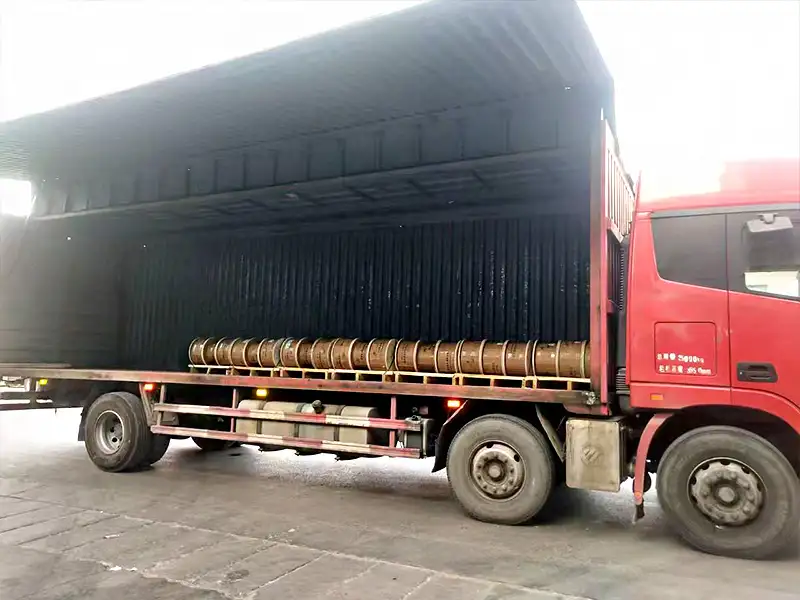

Packaging For Shipment
Chat Log

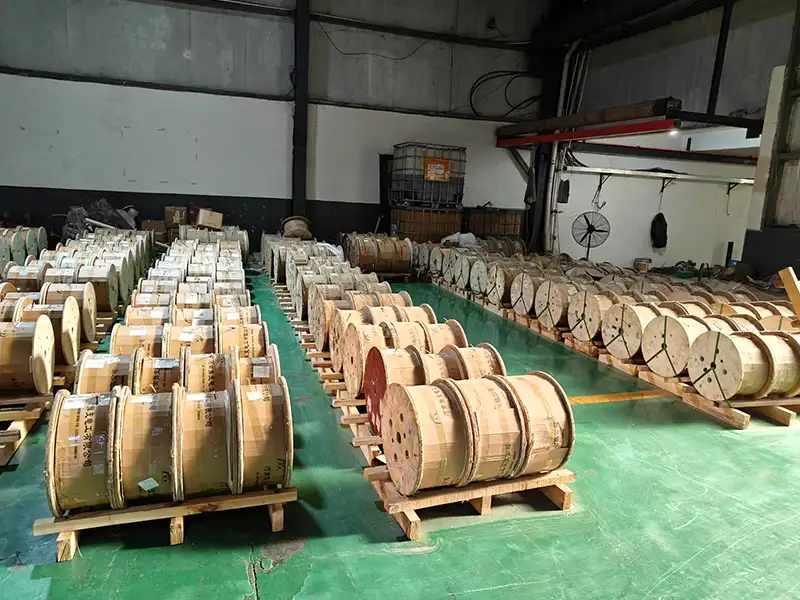

Factory Workshop
